What is Geothermal HVAC?
Geothermal HVAC systems are a pioneering approach to heating and cooling that leverages the Earth's stable underground temperature. At its core, this system comprises a series of underground pipes that exchange heat with the ground, providing an energy-efficient alternative to traditional methods. Unlike conventional HVAC units that rely on external air temperature, geothermal systems tap into the consistent warmth of the earth, offering a reliable and cost-effective solution.
By using the Earth's natural energy, geothermal HVAC systems drastically reduce energy costs. They operate by transferring heat between your building and the ground, rather than generating heat through combustion or electricity. This innovative approach not only conserves energy but also significantly reduces greenhouse gas emissions, aligning with global environmental goals.
As per a recent study on geothermal heat pumps, the global geothermal heat pump market was valued at USD 11.97 billion in 2023 and is expected to grow at a CAGR of 5.6% from 2024 to 2030.
How Do Geothermal HVAC Systems Work?
At the heart of a geothermal HVAC system is an electrically powered heat pump, which circulates fluid (usually water or a refrigerant) through a network of underground pipes. During winter, this system extracts heat from the Earth's underground reserves, warming the circulating fluid. This heated fluid is then pumped back to the building, where a heat exchanger transfers the heat to the air, maintaining a warm indoor environment.
Conversely, in the summer months, the process is reversed. The system absorbs excess heat from the building and transfers it back into the ground, effectively cooling the interior spaces. This bidirectional flow not only stabilizes indoor temperatures but also minimizes the need for additional energy consumption.
The efficiency of geothermal systems lies in their ability to harness the Earth's naturally stable temperature. This means that, regardless of the season, geothermal HVAC offers a balanced, environmentally friendly solution for maintaining comfortable indoor climates.
Types of Geothermal HVAC Systems
Vertical System
Vertical geothermal systems are designed to make minimal impact on landscaping, as their pipes are installed in narrow, deep holes that reach hundreds of feet below the surface. This configuration is ideal for areas where the ground is primarily rocky or unsuitable for horizontal systems, ensuring efficient heat exchange without disrupting the existing environment.
The vertical orientation makes them particularly suitable for urban settings or properties with limited space. However, due to the depth required, they typically involve higher upfront installation costs. Despite this, the long-term energy savings often justify the initial investment for many property owners.
Horizontal System

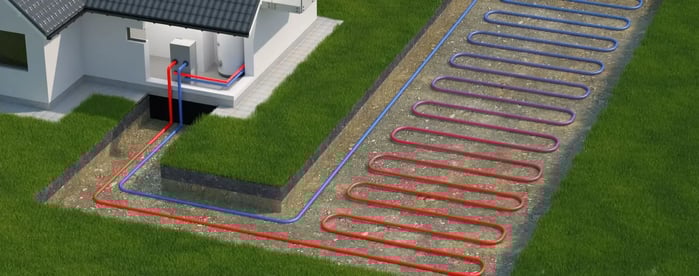

In contrast, horizontal systems involve laying pipes in shallow trenches across a larger area of land. This design is well-suited for properties with ample space and offers a more cost-effective installation process compared to vertical systems. The horizontal layout facilitates efficient heat exchange, making it an excellent choice for residential areas with sufficient land.
These systems are less expensive to install due to the reduced depth and complexity of the trenching process. However, they require a significant amount of land, which may limit their applicability in densely populated areas or smaller properties.
Open Loop System
Open loop systems extract heat from groundwater, which is pumped directly from a well and cycled through the HVAC system. During winter, the heat pump draws warmth from the groundwater, while in summer, it acts as a heat sink. This method leverages the naturally occurring temperatures of groundwater, which remain relatively constant throughout the year.
The efficiency of open-loop systems lies in their ability to utilize readily available water sources. However, they require access to an abundant and clean water supply, as well as careful management of water disposal to ensure sustainability and regulatory compliance.
Closed Loop System
Closed loop systems circulate a heat transfer fluid through a sealed loop of pipes buried underground or submerged in water. This system extracts heat from or releases heat to the Earth, depending on whether the building requires heating or cooling. The closed-loop design ensures a consistent and controlled environment for heat exchange, maximizing efficiency.
These systems are adaptable to various environmental conditions, including areas with extreme temperatures. The closed-loop design minimizes environmental impact, as it does not require the use of water from external sources. This makes it a popular choice for both residential and commercial applications.
Components of Geothermal HVAC
Understanding the components of a geothermal HVAC system is crucial for grasping its functionality and maintenance requirements. Here are the key elements:
- Heat Pump: The central unit responsible for extracting and transferring heat from the ground to the building. It plays a pivotal role in maintaining indoor comfort by regulating temperature.
- Heat Exchanger: This component facilitates the transfer of heat between the fluid in the ground loop and the building's air. It ensures efficient heat transfer, contributing to the system's overall energy efficiency.
- Ground Loop: A network of pipes buried underground or submerged in water, responsible for circulating the heat transfer fluid. It serves as the conduit for heat exchange between the Earth and the building.
- Compressor: An outdoor unit that circulates refrigerant between the indoor and outdoor units, enabling efficient heat exchange. It is essential for the system's heating and cooling processes.
- Evaporator: An indoor unit that absorbs heat from the surrounding air, contributing to the heating process. It plays a vital role in maintaining a comfortable indoor environment.
- Distribution System: Includes conduits and distribution pipes that deliver conditioned air throughout the building. It ensures even temperature distribution and enhances indoor comfort.
- Condenser: A component of the heat pump that releases hot compressed gas from the compressor outdoors. It plays a critical role in the cooling process by expelling heat from the building.
- Blower Motor: Manages airflow and activates the fan for heating and air conditioning. It ensures efficient air circulation, contributing to the system's overall effectiveness.
Benefits of Geothermal Heating and Cooling Systems
Geothermal HVAC systems offer a myriad of benefits that make them an attractive choice for both residential and commercial applications:
- Energy Efficiency: Geothermal systems are renowned for their high efficiency, reducing energy consumption by up to 50% compared to conventional systems. This significant energy savings translates to lower utility bills and reduced environmental impact. As per ENERGY.GOV Geothermal heat pumps (GHPs) can be up to 72% more efficient than standard air conditioning and 44% more efficient than air-source heat pumps.
- Cost Savings: While the initial installation cost can be higher than traditional systems, the long-term savings on energy bills often result in a quick return on investment. Many homeowners recoup installation costs within a few years.
- Environmental Impact: Geothermal systems produce fewer greenhouse gas emissions, contributing to a cleaner and healthier environment. By reducing reliance on fossil fuels, they align with global sustainability goals.
- Longevity: Geothermal systems have a longer lifespan, typically lasting 20-25 years for the heat pump and over 50 years for underground loops. This durability ensures a reliable and consistent source of heating and cooling.
- Low Maintenance: Geothermal systems require less maintenance than traditional HVAC systems, reducing long-term upkeep costs and enhancing reliability. Their simple design and fewer moving parts contribute to their durability.
- Tax Incentives: Many regions offer tax credits and incentives for installing geothermal systems, making them more financially accessible. These incentives can significantly offset initial installation costs.
As per energystar.gov Geothermal Heat Pumps Tax Credit.
The following Residential Clean Energy Tax Credit amounts apply for the prescribed periods:
30% for property placed in service after December 31, 2016, and before January 1, 2020
26% for property placed in service after December 31, 2019, and before January 1, 2022
30% for property placed in service after December 31, 2021, and before January 1, 2033
26% for property placed in service after December 31, 2032, and before January 1, 2034
22% for property placed in service after December 31, 2033, and before January 1, 2035 - Noise Reduction: Geothermal systems operate quietly, enhancing indoor comfort without the noise associated with conventional HVAC units. This quiet operation creates a peaceful and comfortable living environment.
Where Geothermal is Used
Geothermal HVAC systems are versatile and can be implemented in various settings, including:
● Residential Homes
Geothermal systems are most commonly used in single-family homes, where underground pipes can be installed on the property. Homeowners benefit from the energy efficiency and cost savings, making it an attractive option for those seeking sustainable solutions.
● Commercial Buildings
Businesses such as offices, schools, and hospitals can also benefit from geothermal systems due to their large energy demands. The scalability of geothermal systems makes them suitable for a wide range of commercial applications, providing significant energy savings.
● Communities
Geothermal systems can be implemented on a larger scale to heat and cool entire neighborhoods or campuses. This communal approach maximizes energy efficiency and cost savings, making it an ideal solution for community-based projects.
Important Considerations
Before investing in a geothermal HVAC system, it's important to consider the following factors:
Installation Costs
While geothermal systems offer long-term savings, the upfront cost of installation can be higher than traditional HVAC systems. It's essential to weigh the initial investment against the potential energy savings and environmental benefits.
Site Conditions
The best geothermal performance is achieved in areas with relatively stable ground temperatures and suitable soil conditions for digging underground pipes. Conducting a site assessment is crucial to determine the feasibility of a geothermal system.
How Effective is Geothermal HVAC?
Geothermal Heat Pump (GHP) HVAC systems are highly effective, particularly in commercial office spaces. They can save 33-65% in energy use compared with baseline HVAC systems and reduce CO2 emissions by 25-65%. The efficiency and environmental benefits of geothermal systems make them an attractive option for businesses seeking sustainable solutions.
As per A.C.E.S Energy, Geothermal heat pumps can be up to 600% efficient, which is much higher than the 98% maximum efficiency of fossil fuel systems.
Conclusion
The growing demand for sustainable solutions has positioned geothermal HVAC systems as an excellent choice for homeowners and businesses alike. Mechanical, electrical, and plumbing (MEP) engineers at NY Engineers play a crucial role in designing geothermal systems by ensuring proper integration, optimal efficiency, and compliance with local regulations. Their expertise guarantees a well-planned, effective geothermal solution tailored to meet both energy and comfort needs.
By choosing geothermal HVAC, you are investing in a sustainable future that benefits both your wallet and the planet. Explore the potential of geothermal systems and consider consulting with MEP professionals to design a solution that meets your specific requirements.
