What is a Split HVAC System?

A Split HVAC system is a type of heating, ventilation, and air conditioning system that consists of two main units: an outdoor unit and an indoor unit. The outdoor unit houses the compressor and condenser coil, while the indoor unit contains the evaporator coil and air handler. These two units work together to regulate temperature and maintain indoor comfort.

Split HVAC systems are widely used in residential and commercial buildings due to their efficiency, flexibility, and quiet operation. They can be configured as cooling-only systems or as heat pumps to provide both heating and cooling. Unlike traditional central HVAC systems, split systems do not require extensive ductwork, making them an ideal choice for homes and spaces where duct installation is impractical.

Need help?

Keith Fink

Principal

(786) 788-0295

inquiry@ny-engineers.com

5 Different Types of Split System HVAC

Split system HVAC units are widely used for heating and cooling residential and commercial spaces due to their efficiency, flexibility, and ease of installation. These systems consist of an indoor and an outdoor unit, working together to regulate temperature while maintaining energy efficiency. Below are five different types of split system HVAC units and their unique features.

Standard Split System

The most common type, a standard split system, consists of an outdoor condenser and an indoor air handler or furnace. It is designed for both heating and cooling, with a heat pump or air conditioner paired with an indoor evaporator coil. These systems are known for their cost-effectiveness and reliability.

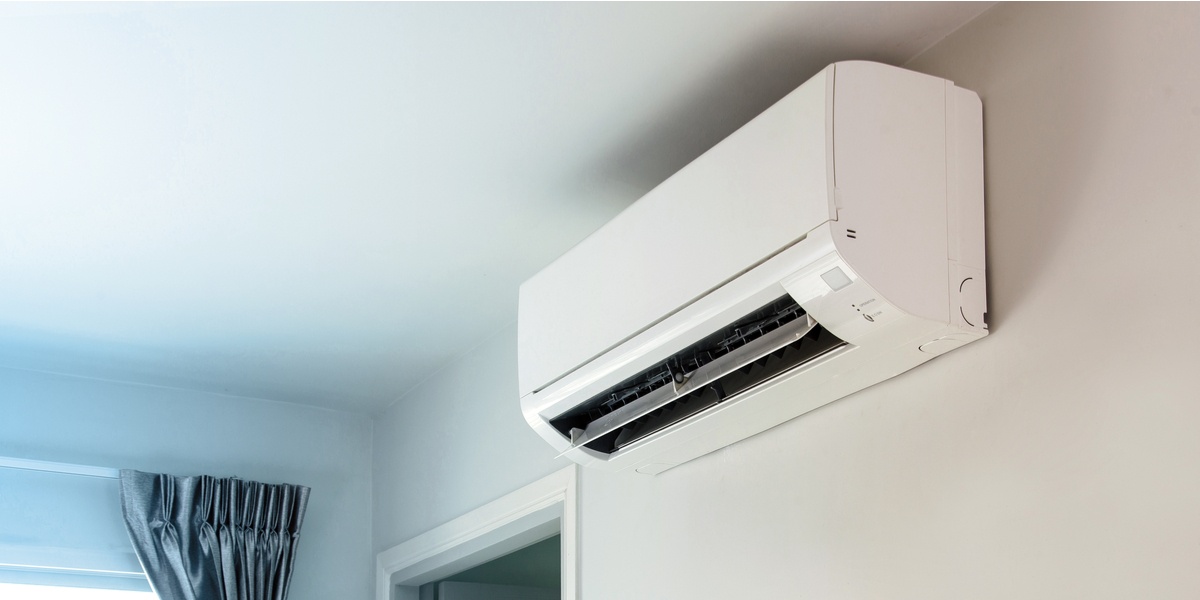

Ductless Mini-Split System

Ductless mini-split systems do not require ductwork, making them an excellent choice for homes without existing ducts or for room additions. They consist of an outdoor compressor and one or more indoor air handlers, offering zoned climate control. They are energy-efficient and allow users to set different temperatures for different rooms.

Multi-Split System

A multi-split system operates similarly to a ductless mini-split but allows multiple indoor units to be connected to a single outdoor unit. This setup is ideal for buildings with multiple rooms requiring independent temperature control. It saves space and reduces outdoor unit clutter while maintaining efficiency.

VRF or VRV System

Variable Refrigerant Flow (VRF) or Variable Refrigerant Volume (VRV) systems are advanced multi-split systems commonly used in commercial buildings. They provide precise temperature control by varying the refrigerant flow based on demand. These systems can simultaneously heat and cool different areas, improving energy efficiency.

Hybrid Split System

A hybrid split system is similar to a standard split system but includes a heat pump that can switch between gas and electric power depending on outdoor temperatures. This allows for optimal energy savings and performance in varying climates. Homeowners benefit from lower energy costs and increased efficiency.

1. Energy Efficiency

Many split systems come with high SEER (Seasonal Energy Efficiency Ratio) ratings, reducing energy consumption.
Inverter technology in modern split systems adjusts the compressor speed to optimize energy use.

2. Cost Savings

Lower energy bills due to improved efficiency.
Less maintenance compared to traditional HVAC systems.
No need for extensive ductwork, which can lead to energy losses.

3. Zoned Cooling & Heating

Multi-zone split systems allow different areas to have independent temperature controls.
This increases comfort while reducing unnecessary energy use in unoccupied spaces.

4. Quiet Operation

The compressor and condenser are located outside, reducing indoor noise.
Indoor units are designed for silent operation, making them ideal for homes and offices.

5. Easy Installation

No need for complex ductwork, reducing installation time and costs.
It can be installed in older buildings or spaces with limited room for ducts.

6. Improved Indoor Air Quality

Many split systems come with advanced air filtration to remove dust, allergens, and pollutants.
Better humidity control compared to window or portable AC units.

7. Aesthetic & Space-Saving Design

Sleek indoor units can be wall-mounted, ceiling-mounted, or concealed, offering flexibility in design.
Outdoor units can be placed discreetly to maintain building aesthetics.

8. Versatility & Flexibility

Available in cooling-only or heat pump versions for year-round comfort.
It can be used in homes, offices, hotels, and commercial spaces.

NY Engineers can help with an HVAC split system design by providing energy-efficient solutions tailored to residential and commercial needs. With expertise in suggesting better systems for your property from ductless, mini-split, multi-split, and central split systems, we ensure optimal performance design, proper load calculations, and seamless integration with existing infrastructure. We focus on maximizing energy savings, improving indoor air quality, and ensuring compliance with code requirements and industry standards. Whether it's selecting the right system, optimizing layout, or enhancing system efficiency, NY Engineers deliver customized solutions that improve comfort and reduce operational costs.
